多種型號滾輪罐耳安全證書，為您礦山安全保駕護航
Safety certificates of various types of roller tank ears will escort your mine safety

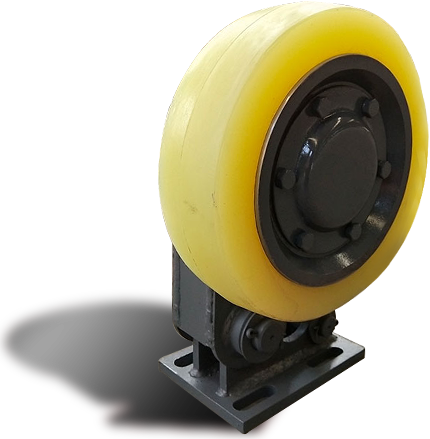

滾輪罐耳為一種立井提升容器用滾輪罐耳，其結構由底座、擺轉臂、滾輪、緩沖器組成；滾輪罐耳結合我國礦山特點為目前運
行中的提升容器更換新型滾輪導向裝置提供了便利條件，廣泛應用與礦山，煤炭等工業生產部門。罐道與罐耳由滑動摩擦變?yōu)?
滾動摩擦，因此減少了動力消耗，降低了噪音，罐道和罐耳的磨損也大大降低。從而，提高了罐道和罐耳的使用壽命。
滾輪罐耳結合我國礦山特點為目前運行中的提升容器更換新型滾輪導向裝置提供了便利條件，廣泛應用與礦山， 煤炭等工業生產部門。
Combined with the characteristics of mines in China, the roller can ear provides convenient conditions for replacing the new roller guide device for the lifting container in operation, which is widely used in mines,Coal and other industrial production departments.
滾輪罐耳沿管道運行時，因罐道的設計安裝，會產生接電、彎曲高點，輪頭會受到水平推力作用，由于支臂架、 底座和緩沖器之間的鉸接作用，使緩沖器受壓縮產生反彈力
When the roller tank ear runs along the pipeline, due to the design and installation of the tank channel, there will be power connection and bending high points, and the wheel head will be subjected to horizontal thrustThe hinge action between the base and the buffer makes the buffer compressed and produce rebound force
保證提升容器順利通過高點
Ensure that the lifting container passes through the high point smoothly
保證提升容器不得與罐道發生碰撞
Ensure that the lifting container does not collide with the tank channel
保證提升容器在上升和下降過程中擺動幅度不得太大
Ensure that the swing range of the lifting container shall not be too large during rising and falling所以緩沖器的緩沖性能是嚴格按照提升容器的重量、運行速度進行設計的，但其輪頭最大水平推力一定要小于或等于行業 標準的要求。根據以上理論設計制造出的滾輪罐耳能夠有效的滿足用戶要求。
三大產品優勢 給您極致產品體驗
Three product advantages give you the ultimate product experience
承載能力大、壽命長、調整維修方便
底座等零部件采用新型材料
整體結構強度更高抗沖擊性強
緩沖器復位壓力小,可有效的避免滾輪和罐道
產生異常碰撞。通過杠桿傳遞到減震筒上
同時起到導向、緩沖與穩定作用
罐道與罐耳由滑動摩擦變?yōu)闈L動摩擦，
因此減少了動力消耗，降低了噪音，罐道
和罐耳的磨損也大大降低。從而提高罐道
罐耳的使用壽命。
安裝方便并且維修簡單，易安裝
Easy installation, simple maintenance and easy installation
| 型號 | 滾輪直徑mm | 最大水平力kn | 緩沖行程mm |
| LS42.5 | 425 | 42 | 10~14 |
| 型號 | 滾輪直徑mm | 最大水平力kn | 緩沖行程mm | |
| 單輪 | L25 | 250 | 12 | 10~14 |
| L30 | 300 | 16 | ||
| L35 | 350 | 24 | ||
| L42.5 | 425 | 33 | ||
| L45 | 450 | 35 | ||
| L50 | 500 | 36 | ||
| 雙輪 | LS30 | 300 | 20 | |
| LS35 | 350 | 28 | ||
| LS45 | 450 | 44 | ||
| LS50 | 500 | 45 | ||
